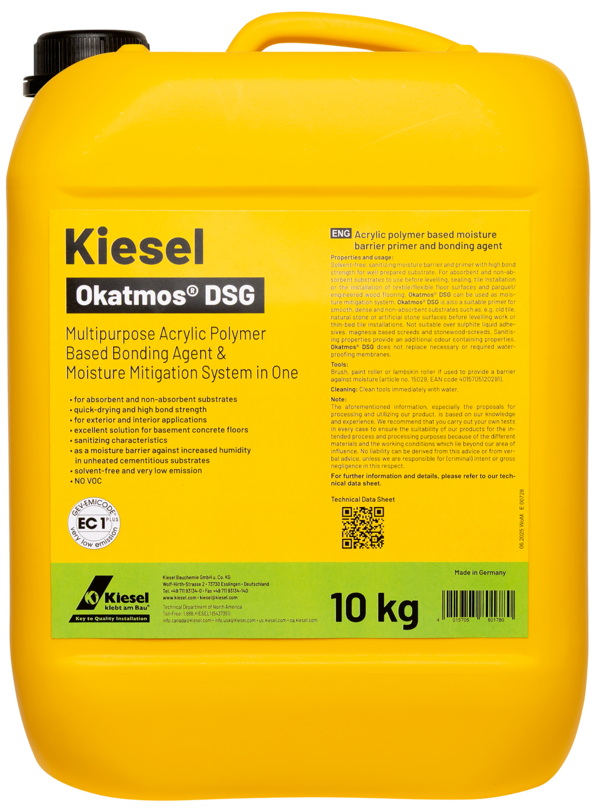

Okatmos® DSG

Dispersion based moisture barrier & bonding agent

For absorbent and non-absorbent substrates
Moisture mitigation system when used as a two or three coat system primer and
Bond promoting agent over various substrates
Quick-drying and high bond strength
For exterior and interior applications
Excellent solution for basement concrete floors
Solvent-free and very low emissions
Antimicrobial technology
As a moisture barrier against increased humidity in unheated cementitious substrates
Protection of the calcium sulphate screed against moisture

Solvent-free, acrylic based, sanitizing moisture barrier, primer and a bonding agent with a high bond strength. For absorbent and non-absorbent substrates to use before levelling, waterproofing, thin-bed tile installation or the installation of textile/flexible floor surfaces and parquet/engineered wood flooring, large, and small format tiles. Okatmos® DSG can be used as a moisture mitigation system on cementitious substrates such as cement screeds or concrete barrier against excessive moisture.

Residual moisture of up to (85% RH) for unheated cement screed (2-layer application) and 4 CM-% (90% RH) (3-layer application).
For unheated concrete substrates (also under cement composite screed) with a maximum residual moisture of (90% RH) (2 layers) and (95% RH) (3 layers) according to DARR method measurements.
For use under large ceramic tiles to provide moisture barrier from self-levelling compounds or normal-set thin-bed mortars.
No thickness limitation when using Kiesel self-levelling compounds over 2-layered applications on calcium sulphate screeds.

Okatmos® DSG is also a suitable primer and bonding agent for smooth, dense and non-absorbent substrates such as, e.g. old tile, natural stone or artificial stone surfaces before levelling work or thin-bed tile installations. Okatmos® DSG can also be applied over properly prepared cut-back adhesive, old or badly sanded asphalt floors, terrazzo, tile, particle board, chipboard, OSB, cement backer units, and concrete screeds and well bonded ceramic tiles. When used over existing exterior tiles a waterproofing membrane Servoflex DMS 1K Plus SuperTec is required. Metal and similar substrates must be rust-free and cleaned with Acetone. Odorless and environmentally friendly. As part of the Okatmos®-product-line, Okatmos® DSG avoids the development of odors originating in microbial interactions in the floor structure. It is therefore very suitable for renovation purposes.
Not suitable over liquid sulphate adhesives, magnesia- based screeds and Stonewood-screeds. Sanitizing properties provide an additional odor containing properties. Okatmos® DSG does not replace necessary or required waterproofing membranes.

The substrate must be dry, clean and sound. Remove mechanically any oil based or loose products. The existing substrates must also comply with the applicable local and national standards and regulations in each case. The respective substrate must be tested in accordance with the applicable standards and when in doubt contact Kiesel technical department. Follow additional guidelines located in TTMAC and TCNA manuals.

Shake container before use.

Okatmos ®DSG as a moisture barrier:
Okatmos® DSG is applied as a two or three coat system to wooden substrates and non-absorbent substrates undiluted with a lambskin roller, high quality paint roller or brush on the substrate. On absorbent substrates, Okatmos® DSG is diluted 1 : 1 with water for the first application. After drying, a second or third application is undiluted to obtain a proper moisture barrier based on the required reduction of RH value. The third coat is applied when the second one is completely dry. Allow the applied primer to dry thoroughly.
Apply Okatmos® DSG to the substrate with the Kiesel Primer or similar evenly over the entire surface and filling the pores. Avoid pooling. Not to be used over hydronic radiant floor heating as a moisture barrier. Can be used over electric heated floors.
Allow the primer to dry thoroughly after applying each coat. Not to be used over magnesium oxide, xylolite flooring, sulphate lye.

As a primer bonding agent:
Okatmos® DSG can also be applied over well prepared cutback adhesive, old terrazzo, particle board, chipboard, OSB, cement backer units and concrete screeds and well bonded ceramic tiles. When used over existing exterior tiles a waterproofing membrane Servoflex DMS 1K Plus SuperTec is required. Metal and similar substrates must be rust-free and cleaned with Acetone.

Color

Pink

VOC

0.0 g/L

Compliance

n/a

Recycle content

n/a

Antimicrobial technology

Yes

Application

Interior, exterior, submerged on walls and floors

Processing time*

Above 10 °C to 30 °C (50 F to 86 F (substrate))

Drying time*

Substrate dependable: approx. 10 minutes e.g. after drying

Floor heating system

Not to be used over water/hydronic radiant floor heating as a moisture barrier. Can be used over electric heated floors.

GISCODE

D 1 according to the Technical Rules for Hazardous Materials (TRGS 610)

EMICODE

EC 1Plus according to GEV

Storage

Store in the frost-protected area for up to 15 months (keep from freezing)

At + 20 °C and 65 % relative humidity. Higher temperatures will reduce and lower temperatures will extend these values accordingly.

Usage	Coverage (g/m² per 1 L)	Substrate/Condition	Per 1 quart	Per 2.49 US gallons
Binder	150 g/m²	Non-absorbent, textured (plywood, OSB, similar)	68 sq ft	678 ft²
	60–70 g/m²	Diluted 1:1, cement, mineral, gypsum	132 sq ft	1,307 sq ft
	120–130 g/m²	Undiluted, smooth (ceramic, stone tiles, etc.)	87 sq ft	856 sq ft
Moisture barrier	60–70 g/m² (diluted)	1st coat, diluted 1:1, cement, mineral, plywood	132 sq ft	1,307 sq ft
(min. 2 coats required)	120–130 g/m² (undiluted)	2nd/3rd coat, undiluted, smooth substrate	68–87 sq ft	678–856 sq ft

Coverage may vary based on substrate texture, porosity, and application technique.

Brush, lamb’s wool roller Kiesel pre-coating roller, high quality paint lint free if used to provide a barrier against moisture 1)

Clean tools immediately with water.

Description	Item No.
60 x 10 kg/ 2.49 U.S. gal/ 9.42 Liters plastic canister	80178
50 boxes with 12 x 1 kg/ 1.0 qts/ 942 ml plastic bottles	80248

The aforementioned information, especially the proposals for processing and utilizing our product, is based on our knowledge and experience. We recommend that you carry out your own tests in every case to ensure the suitability of our products for the intended process and processing purposes because of the different materials and the working conditions which lie beyond our area of influence. No liability can be derived from this advice or from verbal advice, unless we are responsible for (criminal) intent or gross negligence in this respect.
